WSSP Pumps is a premier manufacturer and global supplier of industrial-grade pumping solutions. We engineer durable, high-efficiency pumps for water systems applications—combining cutting-edge technology with reliable performance.

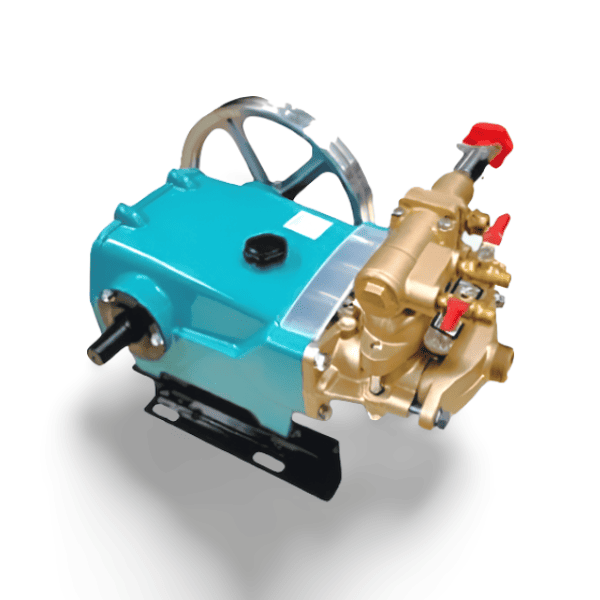

WSSP "A" Series Plunger Pumps are optimally designed to handle low pressure applications such as Air Conditioner Coil Cleaning, Circulation Loop, High Altitude Mountain Water Supply, Pressure Testing, Solar Panel Cleaning, and more.
| Model | Plunger Size (mm) |
Max Pressure (kg/cm²) |
300 RPM (LPM) |
400-450 RPM (LPM) |
550-600 RPM (LPM) |
750-950 RPM (LPM) |
1200 RPM (LPM) |
Stroke Length (mm) |
Max HP |
|---|---|---|---|---|---|---|---|---|---|
| A22 | 22 | 70 | 5 | - | 10 | 18 | 22 | 16 | 5 |
| A40 | 30 | 70 | - | 13.5-15 | - | 26 | 40 | 16 | 7.5 |
| A50 | 30 | 70 | 12 | - | 24 | 41 | 50 | 20 | 7.5 |
| A120 | 38 | 70 | 36 | - | 72 | 120 | - | 38 | 10 |
| A150 | 45 | 70 | 52 | - | 105 | 150 | - | 38 | 15 |
| A200 | 52 | 70 | - | - | - | - | - | 50 | 20 |

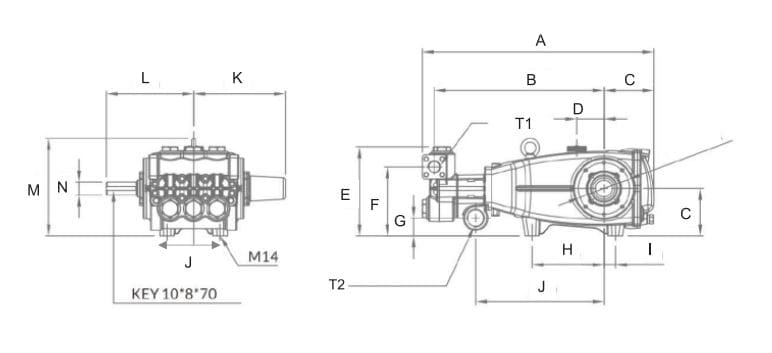

| A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
J (mm) |
K (mm) |
L (mm) |
M (mm) |
N (mm) |
Inlet | Outlet | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A22 | 294 | 234 | 62 | 30 | 161 | 104 | 63 | 75 | 32 | 95 | 125 | 115 | 155 | 20 | 3/4" BSP | 1/2" BSP |
| A40 | 345 | 262 | 75 | 35 | 175 | 116 | 70 | 92 | 38 | 130 | 155 | 145 | 167 | 20 | 1 1/4" BSP | 3/4" BSP |
| A50 | 345 | 262 | 75 | 35 | 175 | 116 | 70 | 92 | 38 | 130 | 155 | 145 | 167 | 20 | 1 1/4" BSP | 3/4" BSP |
| A120 | 510 | 380 | 94 | 42 | 225 | 171 | 82 | 12 | 38 | 162 | 177 | 158 | 172 | 36 | 1 1/2" BSP | 1 1/4" BSP |
| A150 | 585 | 458 | 104 | 42 | 225 | 175 | 88 | 148 | 42 | 185 | 178 | 178 | 185 | 36 | 1 1/2" BSP | 1 1/4" BSP |
| A200 | 620 | 485 | 104 | 45 | 238 | 184 | 94 | 157 | 45 | 210 | 190 | 190 | 194 | 40 | 2 1/2" BSP | 1 1/2" BSP |
WSSP Pumps offers reliable and efficient water pump solutions for residential, commercial, and industrial use. Trusted for quality and performance across India. Our pumps are built to last and engineered for maximum efficiency.
