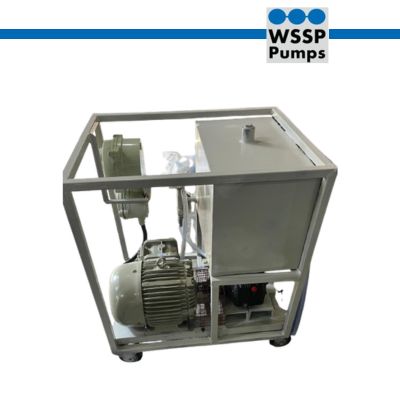

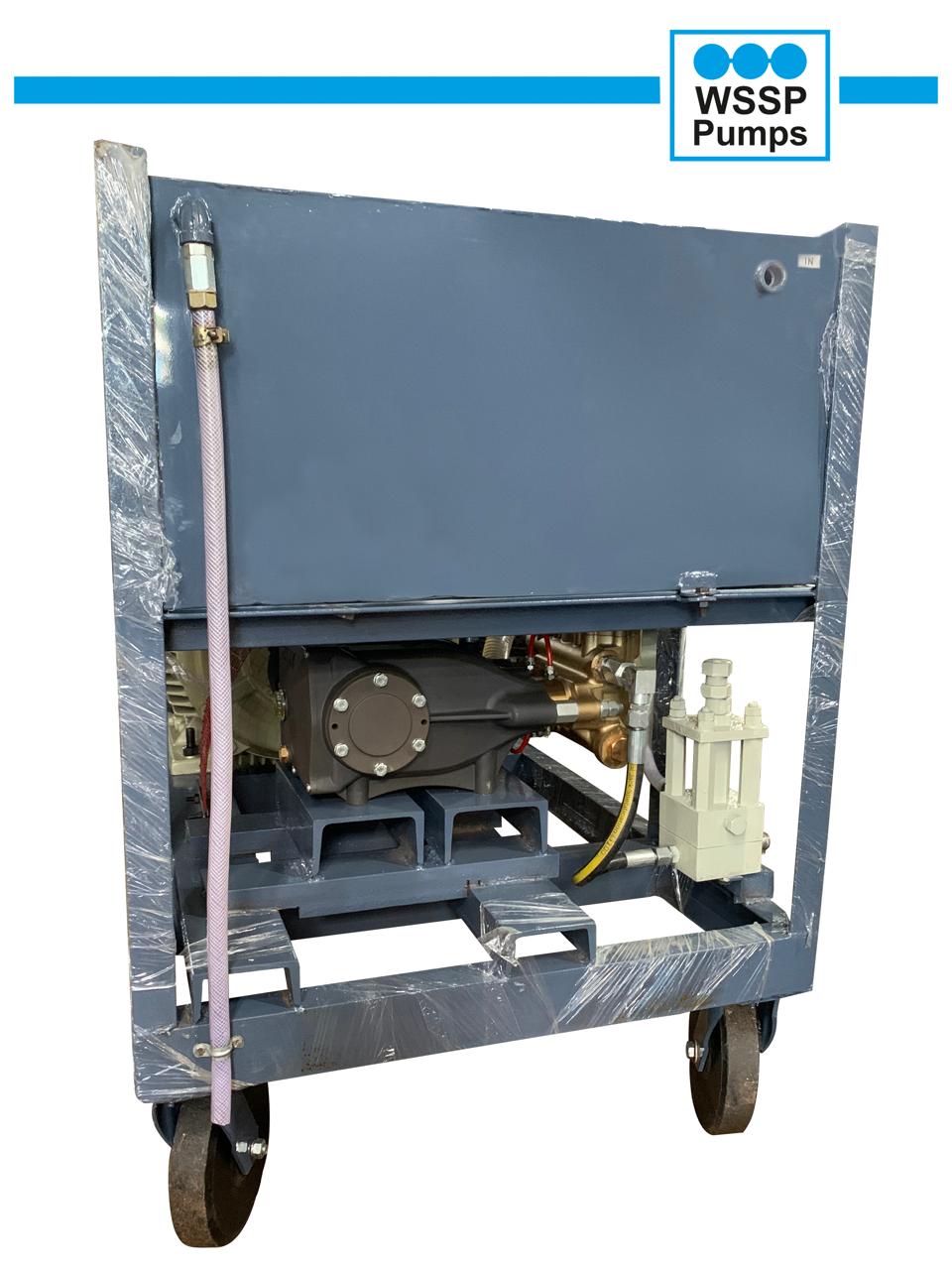

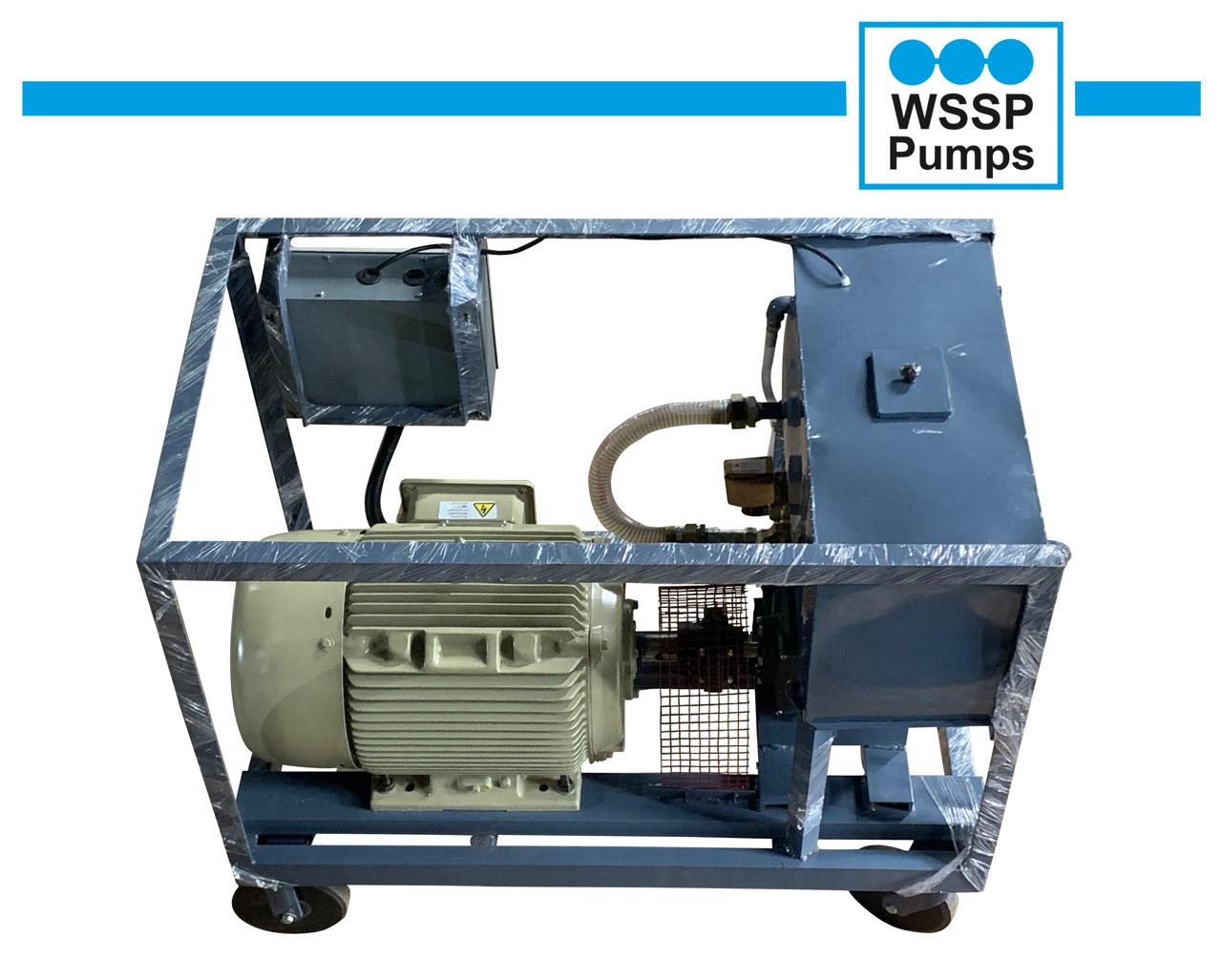

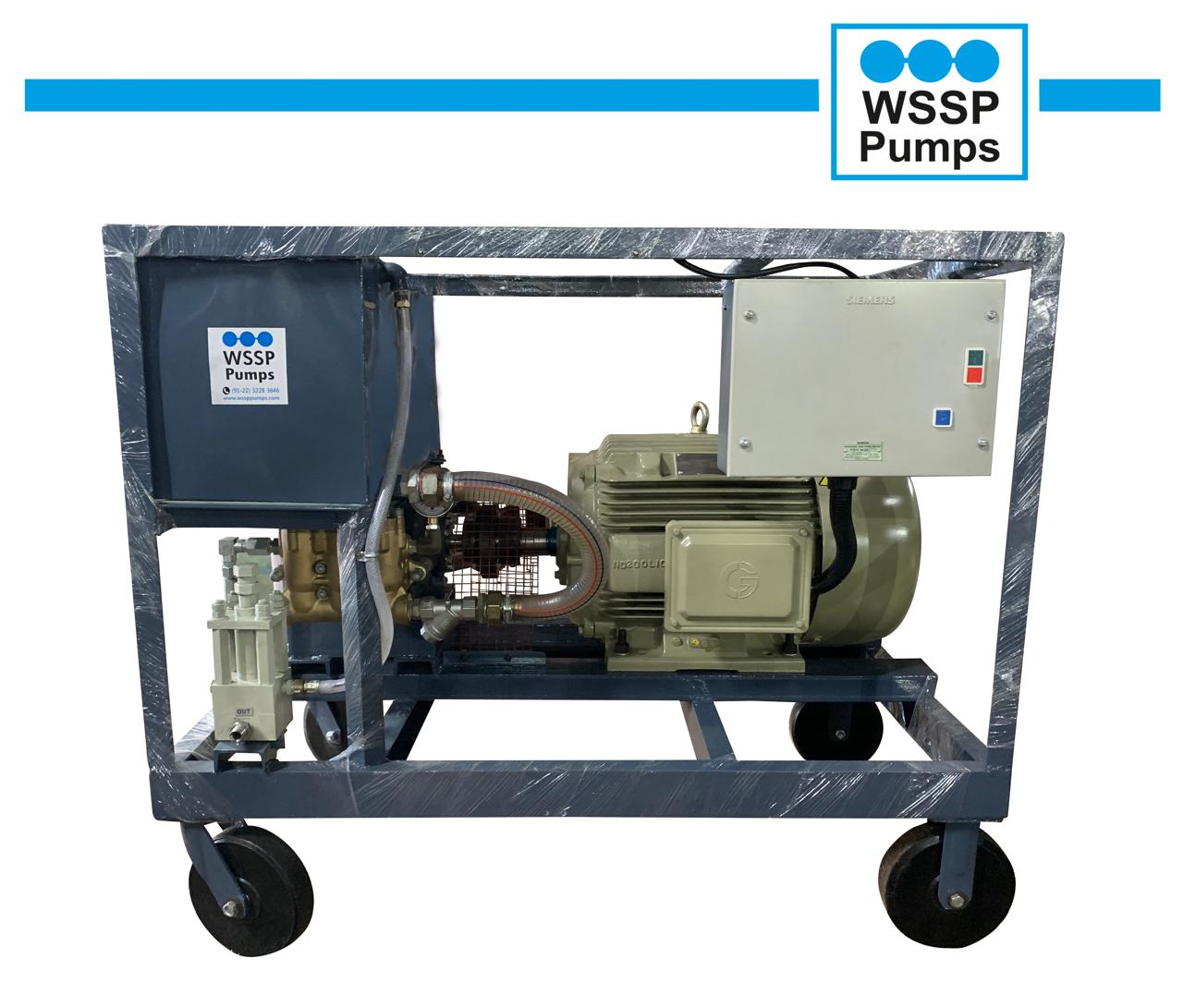

HIGH PRESSURE PUMP UNITS

WSSP range of HP Motorized Pumps are 1450 or lower speeds and are designed for heavy duty continuous applications.

Products

WSSP PUMPS

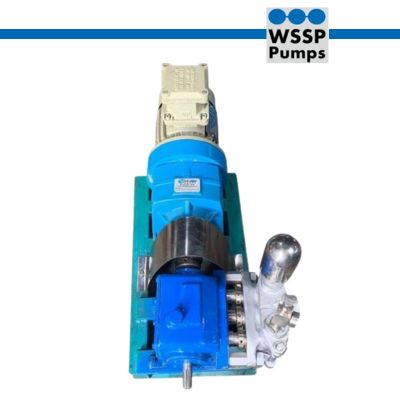

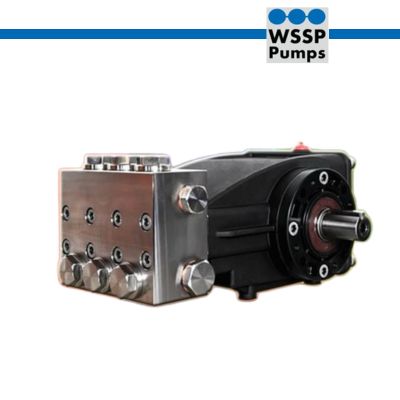

STAINLESS STEEL WET END
WSSP PUMPS
ENGINE DRIVEN
WSSP PUMPS

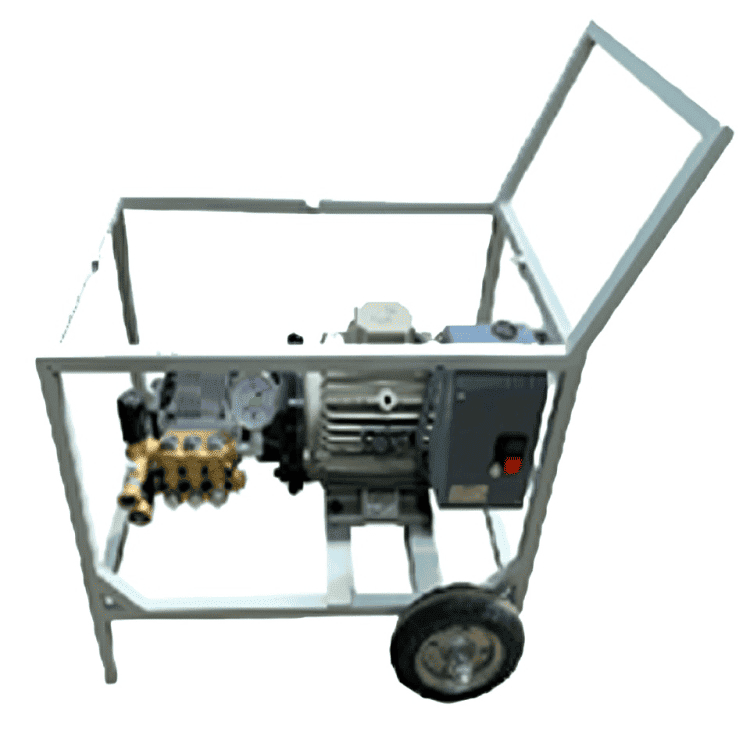

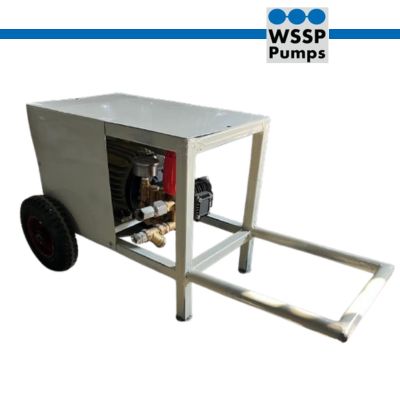

2-WHEEL TROLLEY
WSSP PUMPS

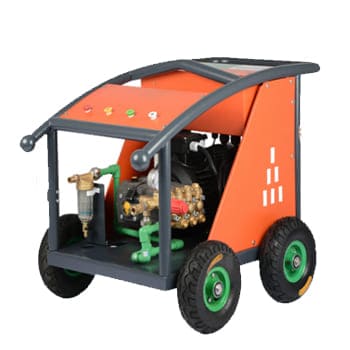

CANOPY PROTECTED
WSSP PUMPS

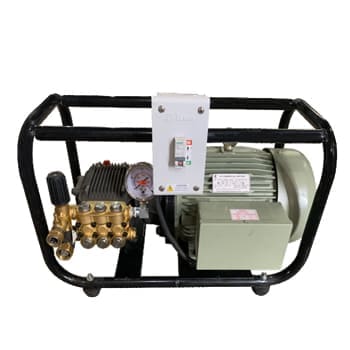

LIFT STAND MOUNTED
WSSP PUMPS

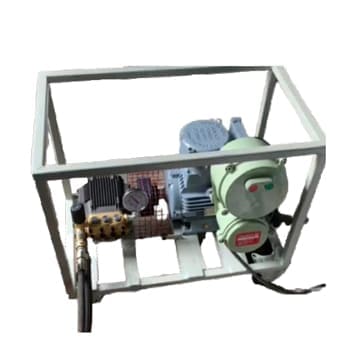

FLAME PROOF ENCLOSURE

SINGLE PHASE PUMP UNITS

MODEL HT 1053 HT 1103 HT 1113 HT 1115 HT 1215
WORKING PRESSURE (Bar) 60 140 170 220 150
WATER FLOW RATE (Litres/min) 25 12 10 10 17
MAX. INLET WATER TEMP. (°C) 60 60 60 60 60
ELECTRIC SUPPLY (V/Hz) 230/50 230/50 230/50 230/50 230/50
ELECTRIC MOTOR (HP/RPM) 3/1450 3/1450 3/1450 5/1450 5/1450
MOUNTING TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY
WEIGHT (Kgs) 30 60 60 70 75

THREE PHASE PUMP UNITS (UPTO 10 HP)

MODEL HT 133 HT 135 HT 137.5 HT 235 HT 237.5 HT 2310
WORKING PRESSURE (Bar) 110 200 300 140 200 280
WATER FLOW RATE (Litres/min) 12 12 12 17 17 17
MAX. INLET WATER TEMP. (°C) 60 60 60 60 60 60
ELECTRIC SUPPLY (V/Hz) 415/50 415/50 415/50 415/50 415/50 415/50
ELECTRIC MOTOR (HP/RPM) 3/1450 5/1450 7.5/1450 5/1450 7.5/1450 10/1450
MOUNTING TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY
WEIGHT 55 65 80 65 80 95

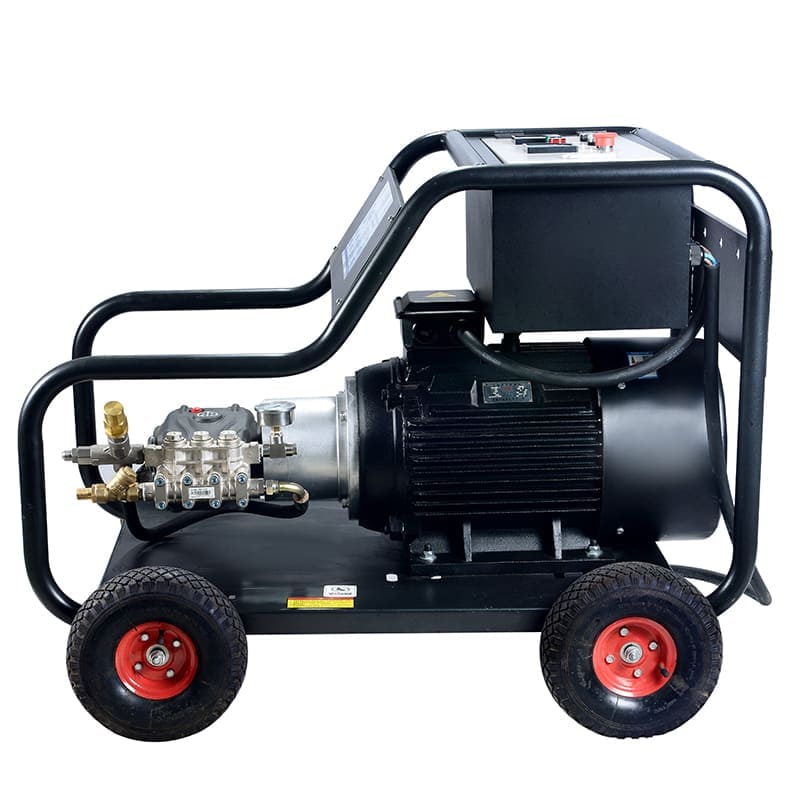

THREE PHASE PUMP UNITS (10 - 25 HP)

MODEL HT 3315A HT 3315B HT 4315 HT 3320 HT 5320 HT 3325
WORKING PRESSURE (Bar) 350 320 150 400 150 500
WATER FLOW RATE (Litres/min) 17 21 37 21 60 21
MAX. INLET WATER TEMP. (°C) 60 60 60 60 60 60
ELECTRIC SUPPLY (V/Hz) 415/50 415/50 415/50 415/50 415/50 415/50
ELECTRIC MOTOR (HP/RPM) 15/1450 15/1450 15/1750 20/1450 20/1450 25/1450
MOUNTING TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY
WEIGHT 140 140 140 165 165 195

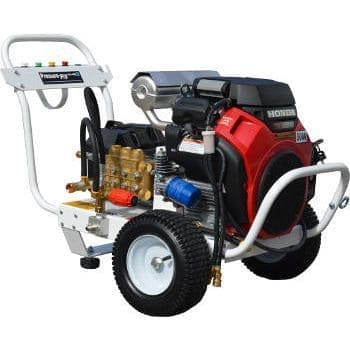

ENGINE DRIVEN PUMP UNITS

MODEL HTE 3 HTE 5 HTE 7 HTE 9 HTE 11 HTE 22
WORKING PRESSURE (Bar) 110 150 250 200 260 350
WATER FLOW RATE (Litres/min) 10 10 10 17 17 21
MAX. INLET WATER TEMP. (°C) 60 60 60 60 60 60
HONDA ENGINE MODEL GX120 GX160 GX240 GX340 GX390 GX690
ENGINE (HP/RPM) 3.4/3000 4.8/3000 7/3000 9.5/3000 11/3000 22/3000
MOUNTING TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY TROLLEY
WEIGHT 32 38 48 55 58 85

Standard Accessories:

  • - High Pressure Hose 1 metre long with swivel coupling at both ends.
  • - Isolation / By-Pass / Non-Return Valves.
  • - Inlet Hose 2 metres long.
  • - Base / Skid / Stand.
  • - MCB / Starter for On/Off.
  • - Suction Strainer.
  • - Pressure Gauge Glycerin Filled.

Optional Accessories:

  • - Incoming Cable.
  • - Flanged In/Out Connection.
  • - Water Tank.
  • - Extra Length Hoses.
  • - Anti-Vibration Mountings.
  • - Variable Frequency Drive.
  • - Solenoid Valves.
  • - Hose Reel.
  • - All Weather Canopy.
  • - Pressure Transmitter / Controller / Indicator.

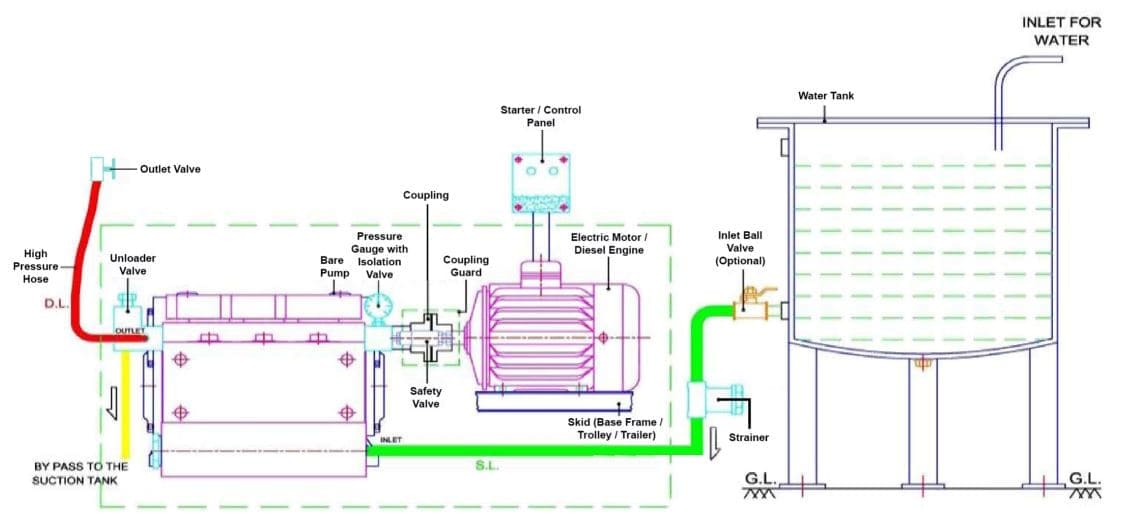

Line Diagram for High Pressure Pump System
