WSSP Pumps is a premier manufacturer and global supplier of industrial-grade pumping solutions. We engineer durable, high-efficiency pumps for water systems applications—combining cutting-edge technology with reliable performance.

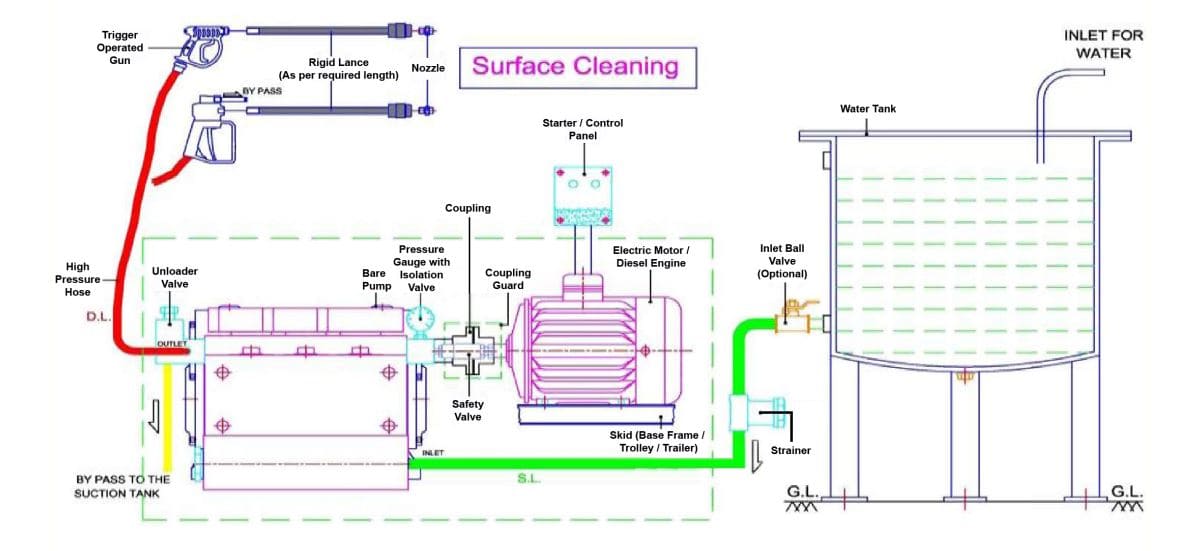

WSSP range of HP Motorized Jetting / Cleaning Pumps are 1450 or lower speeds and are designed for heavy duty continuous applications.
| MODEL | JT 1053 | JT 1103 | JT 1113 | JT 1115 | JT 1215 |
|---|---|---|---|---|---|
| WORKING PRESSURE (Bar) | 60 | 140 | 170 | 220 | 150 |
| WATER FLOW RATE (Litres/min) | 25 | 12 | 10 | 10 | 17 |
| MAX. INLET WATER TEMP. (°C) | 60 | 60 | 60 | 60 | 60 |
| ELECTRIC SUPPLY (V/Hz) | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 |
| ELECTRIC MOTOR (HP/RPM) | 3/1450 | 3/1450 | 3/1450 | 5/1450 | 5/1450 |
| MOUNTING | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY |
| WEIGHT (Kgs) | 30 | 60 | 60 | 70 | 75 |
| MODEL | JT 133 | JT 135 | JT 137.5 | JT 235 | JT 237.5 | JT 2310 |
|---|---|---|---|---|---|---|
| WORKING PRESSURE (Bar) | 110 | 200 | 300 | 140 | 200 | 280 |
| WATER FLOW RATE (Litres/min) | 12 | 12 | 12 | 17 | 17 | 17 |
| MAX. INLET WATER TEMP. (°C) | 60 | 60 | 60 | 60 | 60 | 60 |
| ELECTRIC SUPPLY (V/Hz) | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 |
| ELECTRIC MOTOR (HP/RPM) | 3/1450 | 5/1450 | 7.5/1450 | 5/1450 | 7.5/1450 | 10/1450 |
| MOUNTING | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY |
| WEIGHT | 55 | 65 | 80 | 65 | 80 | 95 |
| MODEL | JT 3315A | JT 3315B | JT 4315 | JT 3320 | JT 5320 | JT 5320 |
|---|---|---|---|---|---|---|
| WORKING PRESSURE (Bar) | 350 | 320 | 150 | 400 | 150 | 500 |
| WATER FLOW RATE (Litres/min) | 17 | 21 | 37 | 21 | 60 | 21 |
| MAX. INLET WATER TEMP. (°C) | 60 | 60 | 60 | 60 | 60 | 60 |
| ELECTRIC SUPPLY (V/Hz) | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 | 415/50 |
| ELECTRIC MOTOR (HP/RPM) | 15/1450 | 15/1450 | 15/1750 | 20/1450 | 20/1450 | 25/1450 |
| MOUNTING | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY |
| WEIGHT | 140 | 140 | 140 | 165 | 165 | 195 |
| MODEL | JTE 3 | JTE 5 | JTE 7 | JTE 9 | JTE 11 | JTE 22 |
|---|---|---|---|---|---|---|
| WORKING PRESSURE (Bar) | 110 | 150 | 250 | 200 | 260 | 350 |
| WATER FLOW RATE (Litres/min) | 10 | 10 | 10 | 17 | 17 | 21 |
| MAX. INLET WATER TEMP. (°C) | 60 | 60 | 60 | 60 | 60 | 60 |
| HONDA ENGINE MODEL | GX120 | GX160 | GX240 | GX340 | GX390 | GX690 |
| ENGINE (HP/RPM) | 3.4/3000 | 4.8/3000 | 7/3000 | 9.5/3000 | 11/3000 | 22/3000 |
| MOUNTING | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY | TROLLEY |
| WEIGHT | 32 | 38 | 48 | 55 | 58 | 85 |
WSSP Pumps offers reliable and efficient water pump solutions for residential, commercial, and industrial use. Trusted for quality and performance across India. Our pumps are built to last and engineered for maximum efficiency.
