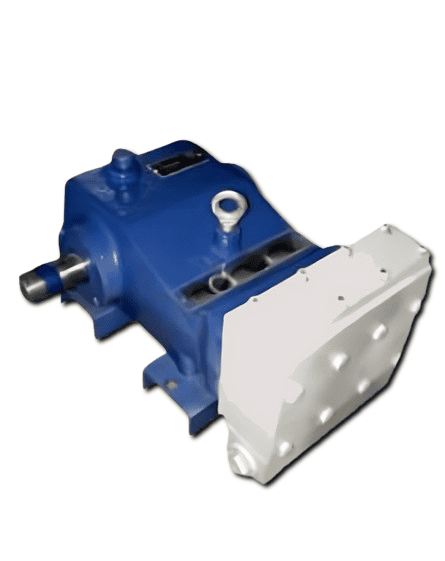

CX Series

WSSP "CX" Series Plunger Pumps are available in 2 Head Configurations. Vertical (for High Flow and Moderate Pressure) and Horizontal (for Extremely High Pressure). Heads are built either in SG lron, Stainless Steel or AISI 410.

CX Series Features:

Flows to 115 LPM
Pressure ratings to 1000 BAR
Continuous splash lubrication provided / Forced lubrication on request
Offerings of six interchangeable plunger and seal packages
Easily serviced in field without removal of pump.
Maximum continuos power : 15HP
Maximum Intermittent power : 25 HP

All Model A Series

	Plunger Size (mm)	Max Pressure (Kg/sq.cm)	650 RPM (LPM)	750 RPM (LPM)	800 RPM (LPM)	850 RPM (LPM)	950 RPM (LPM)	Stroke Length (mm)	Max HP
CXP5-35	22	320	23	27	29	31	34	32	25
CXP14-24	28	200	38	44	47	50	56	32	25
CXP18-20	32	150	49	57	61	64	73	32	25
CXP30-12	40	100	78	90	96	102	115	32	25
CXH-1000	15	1000	11	12	–	–	–	32	25
CXH-750	18	750	15	18	–	–	–	32	25

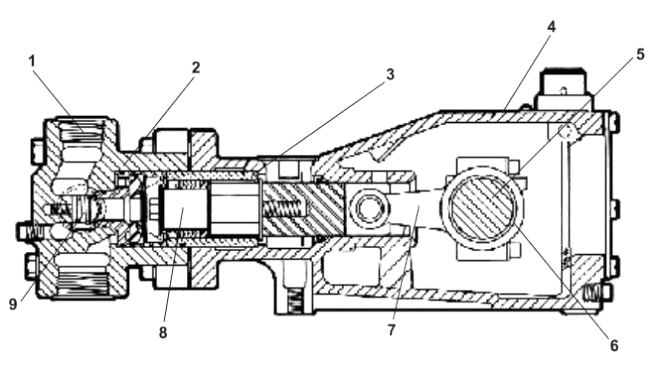

Components

Suction, Discharge —Two suction ports, Two discharge. Threaded for easy connections.
Head — High-strength S.G. iron or SS or AISI 410
Plungers — Solid ceramic or ceramic coated stainless steel.
Body — Solid cast iron crankcase. Oil reservoir for complete component lubrication. Removable end plate for inspection.
Crankshaft —Alloy Steel, ground, polished journals
Main Bearings — Roller bearings offer minimum friction, longer service.
Connecting Links — Forged carbon steel replaceable bronze bushings and babbitt sleeve bearings.
Plunger Assembly — Molded NBR multi lip V-rings, backed by fabric-reinforced phenolic follower.
Valve Assembly — Corrosion-resistant springs and valves for long-lasting performance.

+91 7039107575

CX Series

CX Series Features:

All Model A Series

Components

Dimensional Details

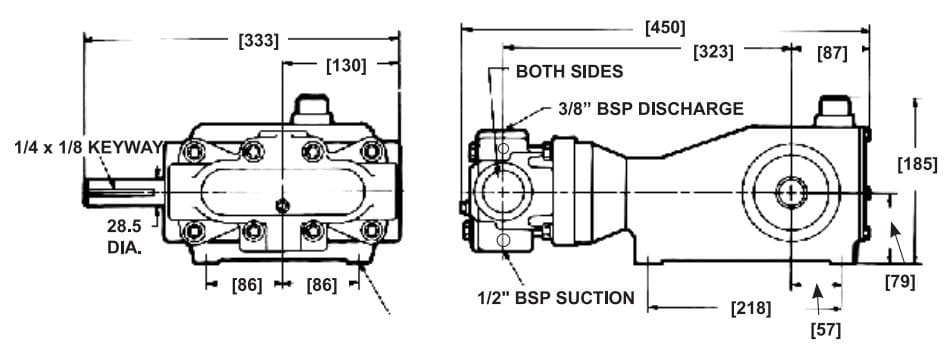

1) CXH Series

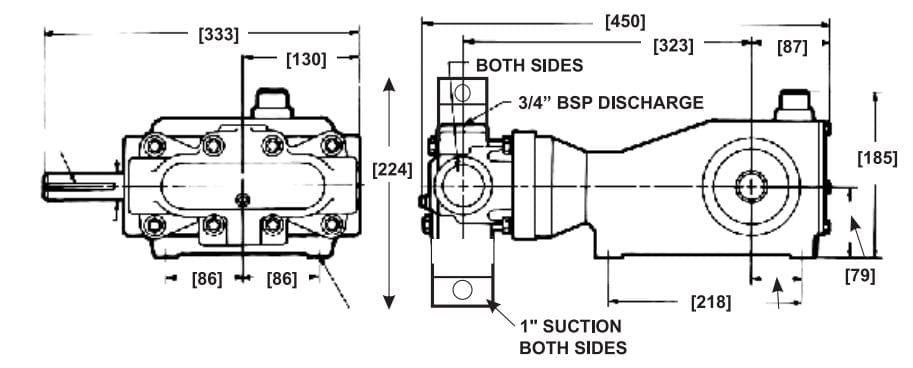

2) CXP Series
