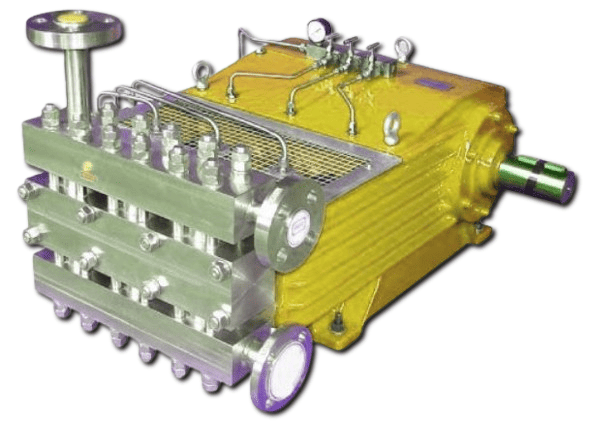

ERO SERIES

WSSP ‘ERO Series Pumps’ are built in Stainless Steel, Duplex Steel, Inconel, Hastalloy & other wet end constructions specifically for handling Waste water, Sea water, Hot water, Acids, Alkalies, Solvents among others. For 25 years, customers count on WSSP ERO pumps to keep their plants and equipments running.

ERO-100

PLUNGER DIAMETER	PRESSURE KG./CM²	200 RPM Litres/min	300 RPM Litres/min	400 RPM Litres/min	500 RPM Litres/min	600 RPM Litres/min
15	350	3	5	7	9	11
20	240	6	8	11	14	17
25	150	9	12	16	20	25
30	105	14	18	24	30	37
35	65	16	22	28	35	45

ERO-300

PLUNGER DIAMETER	PRESSURE KG./CM²	200 RPM Litres/min	300 RPM Litres/min	400 RPM Litres/min	500 RPM Litres/min	600 RPM Litres/min
20	344	7	11	15	19	22
25	218	11	17	23	29	35
30	150	17	25	34	42	51
35	111	23	35	46	58	70
40	84	30	45	61	76	91
45	66	38	52	77	96	115
50	54	47	71	95	119	143
60	48	72	108	144	180	216

ERO-500

PLUNGER DIAMETER	PRESSURE KG./CM²	200 RPM Litres/min	300 RPM Litres/min	400 RPM Litres/min
30	473	28	42	57
40	267	50	76	101
50	171	79	119	158
55	141	96	144	192
60	118	114	171	228
70	86	155	233	311
75	75	178	268	357

ERO-700

PLUNGER DIAMETER	PRESSURE KG./CM²	200 RPM Litres/min	300 RPM Litres/min	400 RPM Litres/min
50	623	132	198	264
60	429	190	286	381
65	367	223	335	447
70	316	259	389	519
75	274	298	447	596
80	242	339	508	678
85	214	382	574	765
90	190	429	643	858
100	154	529	794	1059

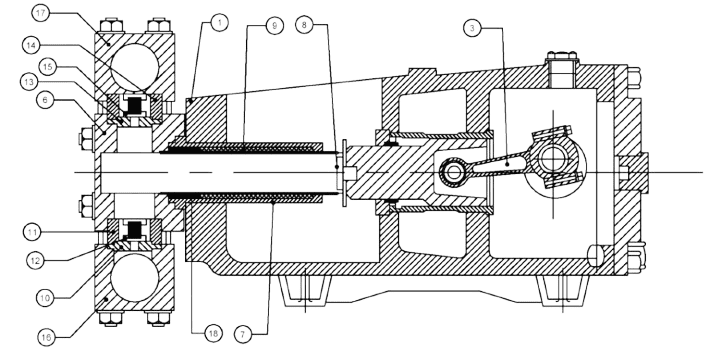

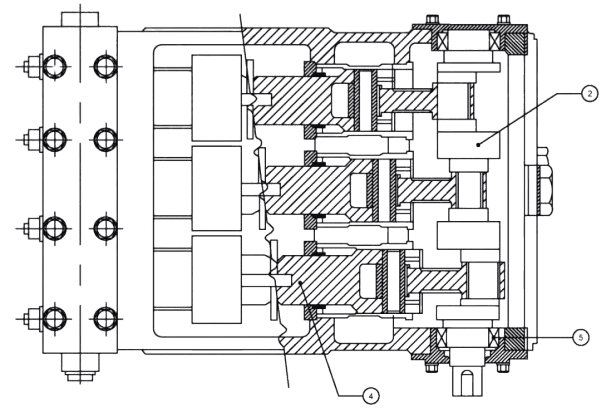

Dimensional Details

CRANK CASE
CRANK SHAFT
CONNECTING ROD
CROSS HEAD
BEARING
CYLINDER BLOCK
STUFFING BOX
PLUNGER (CERAMIC COATING)
GLAND PACKING
VALVE SEAT (SUCTION)
VALVE GUIDE (SUCTION)
VALVE (SUCTION)
VALVE SEAT (DISCHARGE)
VALVE GUIDE (DISCHARGE)
VALVE (DISCHARGE)
SUCTION HEADER
DISCHARGE HEADER
GLAND SPRING
