MK Series

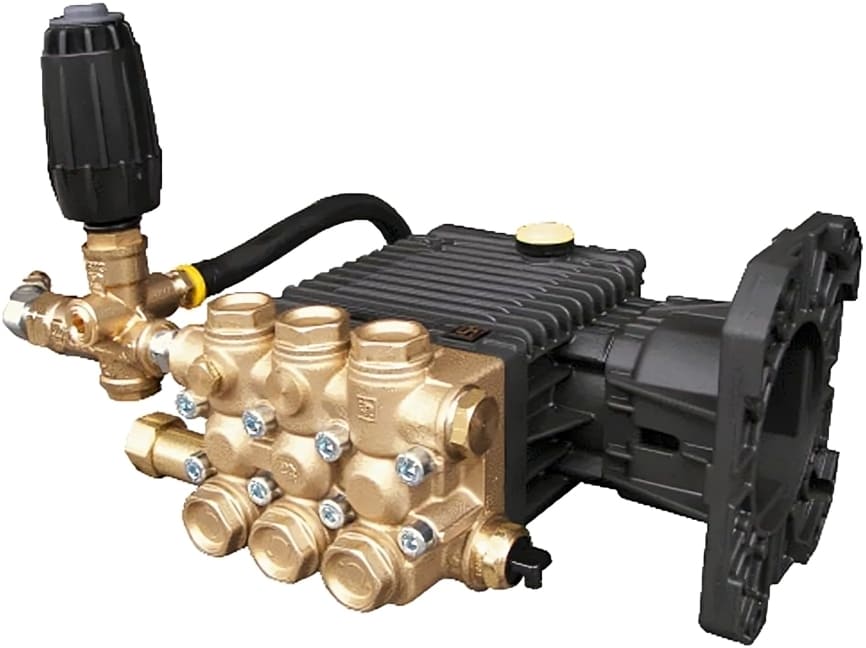

WSSP "Mk" Series Plunger Pumps. Compact, silent running, energy efficient, equipped with ceramic Plungers to Guarantee longer Life requiring minimal maintenance due to their rugged build quality. These Pumps can be associated with various accessories & hydraulic, engine or electric motor drives.

MK Series Pump Features:

Flows to 60 LPM
Pressure ratings to 700 BAR
Continuous splash lubrication provided
Easily serviced in field without removal of pump
Heads constructed out of forged brass.

All Model A Series

Model	Plunger Size (mm)	Max Pressure (Kg/sq.cm)	Capacity (LPM)				Stroke Length (mm)	Max HP
Model	Plunger Size (mm)	Max Pressure (Kg/sq.cm)	300 RPM	600 RPM	1000 RPM	1500 RPM	Stroke Length (mm)	Max HP
MK ‑ 1	15	250	2.4	4.8	8	12	15	10
MK ‑ 1	HP Required @RPM**		1.2	2.6	4.5	6.5
MK ‑ 15	15	500	1.2	2.5	4	6	8	10
MK ‑ 15	HP Required @RPM**		1.2	2.5	4	6
MK ‑ 2	18	250	3.3	6.7	11	17	15	15
MK ‑ 2	HP Required @RPM**		1.8	3.4	5.5	8.5
MK ‑ 3	18	500	4.8	9.5	16	24	21	25
MK ‑ 3	HP Required @RPM**		4.8	9.5	16	24
MK ‑ 4	22	150	6	12	20	30	18	25
MK ‑ 4	HP Required @RPM**		1.8	5.4	6	9
MK ‑ 5	28	150	12	24	40	60	22	25
MK ‑ 5	HP Required @RPM**		3.6	7.2	12	18
MK ‑ 5	18	700	4.8	9.5	16		21	25
MK ‑ 5	HP Required @RPM**		7	14	23

Special Feature

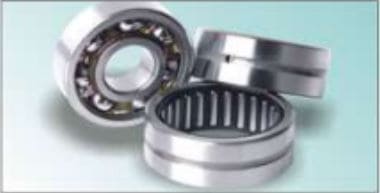

Ball and roller bearings for maximum life and load distribution

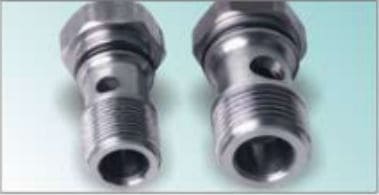

Steel Banjo Bolt for maximum strength

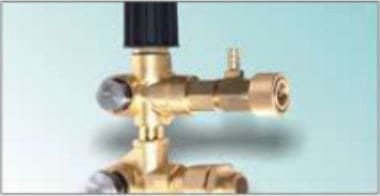

Bolt-on self suction unloader, pressure adjustable

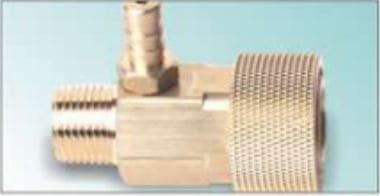

Quick Disconnect out let with fixed rate chemical injector

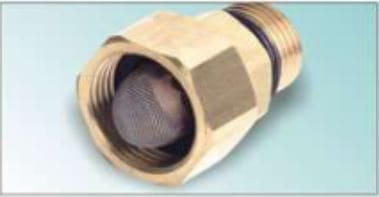

Outlet swivel connector with in-line filter

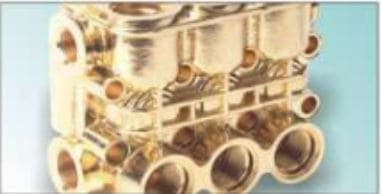

Forged brass manifold provides high strength and corrosion resistance

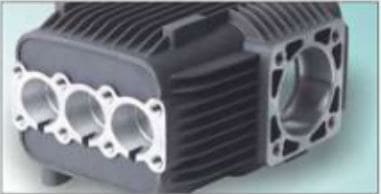

Anodized crankcase with large cooling fins for maximum heat dissipation

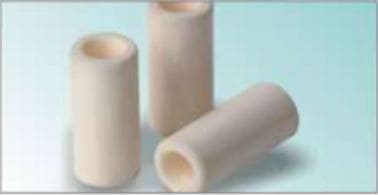

Solid ceramic plungers increases resistance to pitting and wear maximum durability

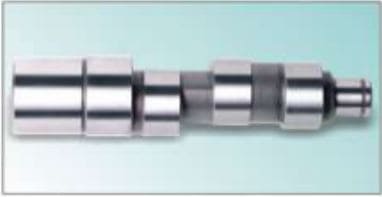

Forged, precision grinded and hardened crankshaft for maximum durability and long life

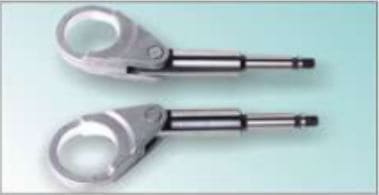

One piece connecting rod stainless steel plunger guide

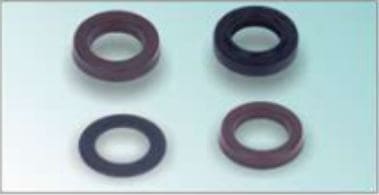

German Parker packing set

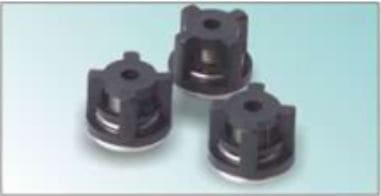

High quality checking valve

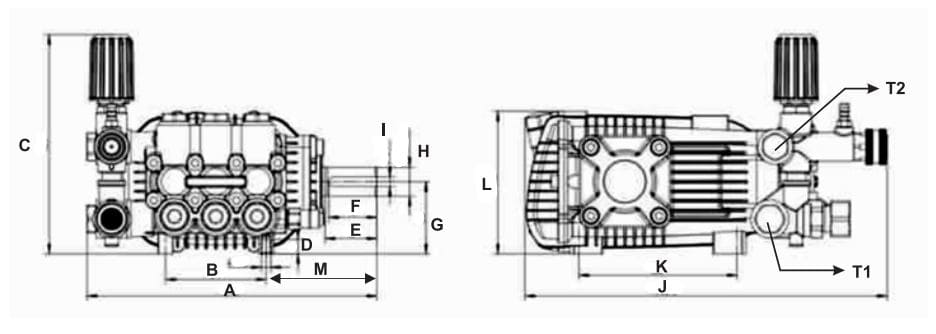

Dimensional Details

	A	B	C	D	E	F	G	H	I	J	K	L	M	N	T1	T2
MK - 1, MK - 15	230	84	180	11	30	25	59	24	8	282.5	115	116.5	76	M8 × 4	1/2" BSP	3/8" BSP
MK - 2, MK - 3	242	84	183	17	43	40	60	24	8	302.5	122	118.5	80	M8 × 4	3/4" BSP	1/2" BSP
MK - 4	272	95	231	22	36.3	36	62	24	8	329	122	138	85.3	M8 × 4	3/4" BSP	1/2" BSP
MK - 5, MK - 6	294	105	248	22	50	45	75	24	8	342	145	150	86	M8 × 4	3/4" BSP	1/2" BSP
